Transporting VLANs with VXLAN: Plain, WireGuard, and IPsec Compared
It’s been a while since my last post, but I believe this comprehensive guide will be valuable for anyone looking to transport VLANs from point A to point B using VXLAN. This article compares three setups—Plain VXLAN, VXLAN with WireGuard, and VXLAN with IPsec—covering configurations, performance results, and recommendations for secure and efficient VLAN transport. Whether you’re in a lab or a production environment, this guide has you covered.
Table of Contents
- Overview and Performance Results
- Setup 1: Plain VXLAN (No Encryption)
- Setup 2: VXLAN + WireGuard
- Setup 3: VXLAN + IPsec (StrongSwan)
- Conclusion and Recommendations
Overview and Performance Results

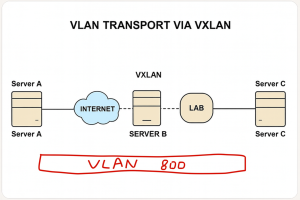

I tested three VXLAN configurations to transport a VLAN between two points, evaluating throughput, retransmissions, and security. Below is a summary of the setups and their performance.
Tested Configurations
- Plain VXLAN: Fastest but unsecure, ideal for private networks.
- VXLAN + WireGuard: Lightweight encryption with moderate performance overhead.
- VXLAN + IPsec: Robust encryption with near-plain performance due to hardware acceleration.
Performance Summary
Setup | Total Throughput | Retransmissions | Notes |
---|---|---|---|
Plain VXLAN (no encryption) | 20.6–21.0 Mbit/s | 570 | Highest throughput; no encryption overhead. Normal retransmissions for UDP + VXLAN. |
VXLAN + WireGuard | 18.0–18.3 Mbit/s | 527 | ~10–15% throughput drop; CPU handles WireGuard encryption. |
VXLAN + IPsec | 20.1–20.5 Mbit/s | 464 | Near-plain VXLAN performance; VTI + kernel crypto + AES-NI minimize overhead. |
Key Observations
- Encryption Overhead
- WireGuard: CPU-intensive due to AES + UDP encapsulation.
- IPsec VTI: Lower overhead with kernel crypto and AES-NI hardware acceleration.
- UDP vs. ESP
- WireGuard: UDP-based, leading to some packet loss and more retransmissions.
- IPsec ESP (L3 tunnel): Minimal packet loss, near-plain VXLAN throughput.
- Plain VXLAN
- Fastest but unsecure, with low latency and maximum throughput.
- Vulnerable to sniffing or traffic injection on public networks.
Setup 1: Plain VXLAN (No Encryption)
Plain VXLAN offers the highest throughput but lacks encryption, making it suitable for private networks or lab environments.
Server A Configuration
# Bring up the network interface
ip link set ens192 up
# Create a bridge
sudo ip link add name br800 type bridge
sudo ip link set br800 up
# Create VXLAN tunnel
sudo ip link add vxlan800 type vxlan id 800 \
local ip_public_serverA remote ip_public_serverB \
dstport 4789 nolearning
sudo ip link set vxlan800 up
# Add interfaces to the bridge
sudo ip link set ens192 master br800
sudo ip link set vxlan800 master br800
Server B Configuration
Server B is behind NAT, so we use a dummy interface and connect to Server A’s public IP.
# Load dummy module
sudo modprobe dummy
# Create dummy interface
sudo ip link add name dummy800 type dummy
sudo ip link set dummy800 up
# Create a bridge
sudo ip link add name br800 type bridge
sudo ip link set br800 up
# Create VXLAN tunnel to Server A's public IP
sudo ip link add vxlan800 type vxlan id 800 \
local ip_private_serverB remote ip_public_serverA \
dstport 4789 nolearning
sudo ip link set vxlan800 up
# Add interfaces to the bridge
sudo ip link set dummy800 master br800
sudo ip link set vxlan800 master br800
sudo ip addr add 10.10.10.98/24 dev br800
Testing Plain VXLAN
# Test connectivity
ping -I br800 10.10.10.1
# Start iperf3 server
iperf3 -s -B 10.10.10.1 # On remote server ( you can consider it Server C )
# Run iperf3 client
iperf3 -c 10.10.10.1 -B 10.10.10.98 -P 4 -t 30
Sample iperf3 Output:
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-30.00 sec 19.5 MBytes 5.45 Mbits/sec 186 sender
[ 5] 0.00-30.04 sec 19.0 MBytes 5.30 Mbits/sec receiver
[ 7] 0.00-30.00 sec 17.9 MBytes 5.01 Mbits/sec 118 sender
[ 7] 0.00-30.04 sec 17.7 MBytes 4.94 Mbits/sec receiver
[ 9] 0.00-30.00 sec 18.6 MBytes 5.20 Mbits/sec 119 sender
[ 9] 0.00-30.04 sec 18.4 MBytes 5.13 Mbits/sec receiver
[ 11] 0.00-30.00 sec 19.1 MBytes 5.34 Mbits/sec 147 sender
[ 11] 0.00-30.04 sec 18.8 MBytes 5.26 Mbits/sec receiver
[SUM] 0.00-30.00 sec 75.1 MBytes 21.0 Mbits/sec 570 sender
[SUM] 0.00-30.04 sec 73.8 MBytes 20.6 Mbits/sec receiver
Performance: Plain VXLAN achieved 20.6–21.0 Mbit/s with 570 retransmissions, offering maximum throughput but no security.
Setup 2: VXLAN + WireGuard
This setup adds lightweight encryption with WireGuard, suitable for secure VLAN transport with a moderate performance hit (~10–15% lower throughput).
Step 1: Install WireGuard
sudo apt update
sudo apt install wireguard iproute2 -y
Step 2: Generate WireGuard Keys
wg genkey | tee privatekey | wg pubkey > publickey
Step 3: Configure WireGuard
Server A (/etc/wireguard/wg0.conf):
[Interface]
Address = 100.64.0.1/30
PrivateKey = <ServerA_privatekey>
ListenPort = 51820
[Peer]
PublicKey = <ServerB_publickey>
AllowedIPs = 100.64.0.2/32
Endpoint = server_B_external_ip:51820
PersistentKeepalive = 25
Server B (/etc/wireguard/wg0.conf):
[Interface]
Address = 100.64.0.2/30
PrivateKey = <ServerB_privatekey>
ListenPort = 51820
[Peer]
PublicKey = <ServerA_publickey>
AllowedIPs = 100.64.0.1/32
Endpoint = Server_A_external_ip:51820
PersistentKeepalive = 25
Step 4: Enable WireGuard
sudo wg-quick up wg0
sudo systemctl enable wg-quick@wg0
# Verify connectivity
ping -c 2 100.64.0.2 # From Server A
ping -c 2 100.64.0.1 # From Server B
Step 5: Configure VXLAN
Server A:
sudo ip link add vxlan800 type vxlan id 800 local 100.64.0.1 remote 100.64.0.2 dstport 4789 nolearning
sudo ip link set vxlan800 up
sudo ip link add name br800 type bridge
sudo ip link set br800 up
sudo ip link set vxlan800 master br800
sudo ip link set ens192 master br800
Server B:
sudo ip link add vxlan800 type vxlan id 800 local 100.64.0.2 remote 100.64.0.1 dstport 4789 nolearning
sudo ip link set vxlan800 up
sudo ip link add name br800 type bridge
sudo ip link set br800 up
sudo ip link set vxlan800 master br800
sudo ip link add name dummy800 type dummy
sudo ip link set dummy800 up
sudo ip link set dummy800 master br800
sudo ip addr add 10.10.10.98/24 dev br800
Step 6: Testing VXLAN + WireGuard
# Test connectivity
ping -I br800 10.10.10.1
# Start iperf3 server
iperf3 -s -B 10.10.10.1 # On remote server ( you can consider it Server C )
# Run iperf3 client
iperf3 -c 10.10.10.1 -B 10.10.10.98 -P 4 -t 30
Sample iperf3 Output:
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-30.00 sec 15.9 MBytes 4.45 Mbits/sec 137 sender
[ 5] 0.00-30.04 sec 15.6 MBytes 4.36 Mbits/sec receiver
[ 7] 0.00-30.00 sec 16.2 MBytes 4.53 Mbits/sec 127 sender
[ 7] 0.00-30.04 sec 15.9 MBytes 4.44 Mbits/sec receiver
[ 9] 0.00-30.00 sec 15.5 MBytes 4.33 Mbits/sec 113 sender
[ 9] 0.00-30.04 sec 15.3 MBytes 4.26 Mbits/sec receiver
[ 11] 0.00-30.00 sec 17.8 MBytes 4.99 Mbits/sec 150 sender
[ 11] 0.00-30.04 sec 17.5 MBytes 4.90 Mbits/sec receiver
[SUM] 0.00-30.00 sec 65.4 MBytes 18.3 Mbits/sec 527 sender
[SUM] 0.00-30.04 sec 64.3 MBytes 18.0 Mbits/sec receiver
Performance: VXLAN + WireGuard achieved 18.0–18.3 Mbit/s with 527 retransmissions, showing a ~10–15% performance drop due to CPU-based encryption.
Setup 3: VXLAN + IPsec (StrongSwan)
VXLAN over IPsec provides robust encryption with minimal performance overhead, leveraging VTI and AES-NI hardware acceleration.
Step 1: Install StrongSwan
apt install strongswan
Server A Configuration
Step 2: Configure IPsec
# /etc/ipsec.conf - strongSwan IPsec configuration file
config setup
uniqueids = no
conn %default
keyexchange=ikev2
ike=aes128-sha256-modp2048
esp=aes256-sha256
dpdaction=clear
dpddelay=300s
fragmentation=yes
conn vxlan-ipsec
left=ip_public_serverA
leftid=ip_public_serverA
leftsubnet=0.0.0.0/0
leftupdown=/etc/strongswan.d/updown-vxlan.sh
right=ip_public_serverB
rightid=ip_private_serverB
rightsubnet=0.0.0.0/0
type=tunnel
auto=start
keyingtries=%forever
authby=psk
mark=10
Step 3: Configure IPsec Secrets
# /etc/ipsec.secrets
ip_private_serverB ip_public_serverA : PSK "putsomething"
Step 4: Create Up/Down Script
# /etc/strongswan.d/updown-vxlan.sh
#!/bin/bash
# Simple up/down script for VTI + VXLAN
case "$PLUTO_VERB" in
up-client|up-host|up)
logger "[$PLUTO_CONNECTION] VPN UP: creating interfaces"
/usr/local/bin/create_vxlan.sh
;;
down-client|down-host|down)
logger "[$PLUTO_CONNECTION] VPN DOWN: deleting interfaces"
/usr/local/bin/destroy_vxlan.sh
;;
esac
Step 5: Create VXLAN Setup Script
# /usr/local/bin/create_vxlan.sh
sudo ip link add ipsec0 type vti local ip_public_serverA remote ip_public_serverB key 10
sudo ip addr add 100.64.0.1/30 dev ipsec0
sudo ip link set ipsec0 up
sudo ip link add vxlan800 type vxlan id 800 local 100.64.0.1 remote 100.64.0.2 dstport 4789 nolearning
sudo ip link set vxlan800 up
sudo ip link add name br800 type bridge
sudo ip link set br800 up
sudo ip link set vxlan800 master br800
sudo ip link set ens192 master br800
sudo ip route del default table 220
Step 6: Create VXLAN Teardown Script
# /usr/local/bin/destroy_vxlan.sh
# Delete IPsec VTI
ip link del ipsec0
# Remove interfaces from bridge
sudo ip link set vxlan800 nomaster 2>/dev/null
sudo ip link set ens192.800 nomaster 2>/dev/null
sudo ip link set ens192 nomaster 2>/dev/null
# Delete bridge and VXLAN
sudo ip link del vxlan800 2>/dev/null
sudo ip link del br800 2>/dev/null
# Delete VLAN subinterface if created
sudo ip link del ens192.800 2>/dev/null
Server B Configuration
Step 1: Configure IPsec
# /etc/ipsec.conf - strongSwan IPsec configuration file
config setup
uniqueids = no
conn %default
keyexchange=ikev2
ike=aes128-sha256-modp2048
esp=aes256-sha256
dpdaction=clear
dpddelay=300s
fragmentation=yes
conn vxlan-ipsec
left=ip_private_serverB
leftid=ip_private_serverB
leftsubnet=0.0.0.0/0
leftupdown=/etc/strongswan.d/updown-vxlan.sh
right=ip_public_serverA
rightid=ip_public_serverA
rightsubnet=0.0.0.0/0
type=tunnel
auto=start
keyingtries=%forever
authby=psk
mark=10
Step 2: Configure IPsec Secrets
# /etc/ipsec.secrets
ip_private_serverB ip_public_serverA : PSK "putsomething"
Step 9: Create Up/Down Script
# /etc/strongswan.d/updown-vxlan.sh
#!/bin/bash
# Simple up/down script for VTI + VXLAN
case "$PLUTO_VERB" in
up-client|up-host|up)
logger "[$PLUTO_CONNECTION] VPN UP: creating interfaces"
/usr/local/bin/create_vxlan.sh
;;
down-client|down-host|down)
logger "[$PLUTO_CONNECTION] VPN DOWN: deleting interfaces"
/usr/local/bin/destroy_vxlan.sh
;;
esac
Step 3: Create VXLAN Setup Script
# /usr/local/bin/create_vxlan.sh
sudo ip link add ipsec0 type vti local ip_private_serverB remote ip_public_serverA key 10
sudo ip addr add 100.64.0.2/30 dev ipsec0
sudo ip link set ipsec0 up
sudo ip link add vxlan800 type vxlan id 800 local 100.64.0.2 remote 100.64.0.1 dstport 4789 nolearning
sudo ip link set vxlan800 up
sudo ip link add name br800 type bridge
sudo ip link set br800 up
sudo ip link add name dummy800 type dummy
sudo ip link set dummy800 up
sudo ip link set vxlan800 master br800
sudo ip link set dummy800 master br800
sudo ip addr add 10.10.10.98/24 dev br800
sudo ip route del default table 220
Step 4: Create VXLAN Teardown Script
# /usr/local/bin/destroy_vxlan.sh
# Delete IPsec VTI
ip link del ipsec0
# Remove interfaces from bridge
sudo ip link set vxlan800 nomaster 2>/dev/null
sudo ip link set dummy800 nomaster 2>/dev/null
# Delete VXLAN, dummy, and bridge
sudo ip link del vxlan800 2>/dev/null
sudo ip link del dummy800 2>/dev/null
sudo ip link del br800 2>/dev/null
Testing VXLAN + IPsec
# Test connectivity
ping -I br800 10.10.10.1
# Start iperf3 server
iperf3 -s -B 10.10.10.1
# Run iperf3 client
iperf3 -c 10.10.10.1 -B 10.10.10.98 -P 4 -t 30
Sample iperf3 Output:
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-30.00 sec 20.7 MBytes 5.80 Mbits/sec 117 sender
[ 5] 0.00-30.04 sec 20.4 MBytes 5.71 Mbits/sec receiver
[ 7] 0.00-30.00 sec 17.0 MBytes 4.74 Mbits/sec 116 sender
[ 7] 0.00-30.04 sec 16.7 MBytes 4.66 Mbits/sec receiver
[ 9] 0.00-30.00 sec 18.8 MBytes 5.25 Mbits/sec 115 sender
[ 9] 0.00-30.04 sec 18.5 MBytes 5.15 Mbits/sec receiver
[ 11] 0.00-30.00 sec 16.7 MBytes 4.67 Mbits/sec 116 sender
[ 11] 0.00-30.04 sec 16.5 MBytes 4.59 Mbits/sec receiver
[SUM] 0.00-30.00 sec 73.2 MBytes 20.5 Mbits/sec 464 sender
[SUM] 0.00-30.04 sec 72.0 MBytes 20.1 Mbits/sec receiver
Performance: VXLAN + IPsec achieved 20.1–20.5 Mbit/s with 464 retransmissions, nearly matching plain VXLAN due to VTI and AES-NI acceleration.
Conclusion and Recommendations
- Public Internet: Use VXLAN + IPsec for robust security and near-plain performance, or VXLAN + WireGuard for lightweight encryption.
- Private Networks/Labs: Plain VXLAN offers maximum throughput but no security.
- Performance: IPsec’s kernel-mode crypto and AES-NI support make it slightly faster than WireGuard in this setup.
For detailed networking guides, explore our Networking Tutorials.
